Background

Protocol Buffers (Protobufs) are a language agnostic data serialization format that allow data to be safely and efficiently trasmitted or stored. Protobuf usage has exploded within the past several years. When testing web applications, mobile applications, and embedded devices alike, it’s increasingly likely you’ll encounter Protobuf data within requests like this:

You might have logically tried to fuzz these inputs as you would any other parameter, only to realize that things weren’t as simple as they appeared:

Additionally, you might have discovered a Protobuf definition (.proto) file like the one below and wondered how you could use such a file to send valid, fuzzable requests. If so, ProtoBurp was made for you ❤️

syntax = "proto3";

package tutorial;

message Person {
  string name = 1;
  int32 id = 2;
  string email = 3;

  enum PhoneType {
    PHONE_TYPE_UNSPECIFIED = 0;
    PHONE_TYPE_MOBILE = 1;
    PHONE_TYPE_HOME = 2;
    PHONE_TYPE_WORK = 3;
  }

  message PhoneNumber {
    string number = 1;
    PhoneType type = 2;
  }

  repeated PhoneNumber phones = 4;
}

message AddressBook {
  repeated Person people = 1;
}

Introducing ProtoBurp

ProtoBurp is a Burp Suite extension that enables security researchers to encode and fuzz custom Protobuf messages. It allows users to automatically convert JSON data into a Protobuf message based on a provided protobuf definition file. This opens up opportunities for fuzzing inputs using Burp’s Repeater and Intruder tools, as well as proxy traffic from other tools (e.g. sqlmap).

How do I use ProtoBurp?

The magic behind ProtoBurp lies in its ability to dynamically create Protobuf messages based on provided JSON input and a Protobuf definition file.

1. Install ProtoBurp and its dependencies (see the GitHub repository)
2. Create or obtain a .proto file you’d like to use to serialize Protobuf messages (examples are in the test_app folder).
3. Use the protoc utility to compile your .proto file into Python format

protoc --python_out=./ MyMessage.proto

4. Click the ‘Choose File’ button to select your compiled protobuf file.
5. Check the ‘Enable ProtoBurp’ checkbox.
6. All requests sent with the header ProtoBurp: True will then be converted from JSON to a Protobuf!

Usage with Intruder

Once you have ProtoBurp set up, you can fuzz Protobuf inputs with Burp just like you would any other parameter! For example, to fuzz the number field we’ve seen in the previous examples, we can just send our JSON payload request to Intruder:

For each fuzzed request Intruder makes, ProtoBurp will handle the conversion from JSON into Protobuf format:

Note: The modified requests won’t show up in Burp’s proxy history. You’ll need to view the outgoing requests using Burp’s Logger or an extension like Logger++, as I did above.

Usage with sqlmap (or any external tool)

Possibly the largest motivator for creating ProtoBurp was to generate a way to seamlessly use external security tools on Protobuf inputs. For example, during one web application assessment, I identified an OR-based SQL injection in a Protobuf field, as shown below.

Normally, my next step would be to pass this request to sqlmap and have the database fully dumped within 30 minutes. However, I couldn’t do this because of the pesky Protobufs.

But now enter ProtoBurp. It is now possible to give sqlmap a JSON object to insert payloads into and let ProtoBurp handle the Protobuf encoding. We can now use the following command:

sqlmap -u http://chickenblasters.com:5000 --force-ssl --level 5 --risk 3 -H "ProtoBurp: true" --batch --proxy=http://localhost:8080 --data='{"people":[{"name":"JohnDoe","id":1,"email":"john.doe@example.com","phones":[{"number":"1234567890*","type":"PHONE_TYPE_MOBILE"},{"number":"0987654321","type":"PHONE_TYPE_HOME"}]}]}'

Note: Make sure to set the ProtoBurp: True header!

All proxy traffic from sqlmap is then converted by ProtoBurp:

Generating a JSON payload

You might be wondering: “How can I generate a JSON object from a .proto file to use with ProtoBurp?”

Easy, I wrote a script that, given a .proto file, will fill in placeholder values to generate a JSON payload. You can then use the JSON payload with ProtoBurp. Here’s how you use the script:

❯ python3 json-generator.py
Usage: python3 json-generator.py <compiled_proto_definition_pb2.py> <MessageName>

❯ python3 json-generator.py test_app/addressbook_pb2.py AddressBook
{
  "people": [
    {
      "name": "example",
      "id": 1,
      "email": "example",
      "phones": [
        {
          "number": "example",
          "type": "PHONE_TYPE_UNSPECIFIED"
        },
        {
          "number": "example",
          "type": "PHONE_TYPE_UNSPECIFIED"
        }
      ]
    },
    {
      "name": "example",
      "id": 1,
      "email": "example",
      "phones": [
        {
          "number": "example",
          "type": "PHONE_TYPE_UNSPECIFIED"
        },
        {
          "number": "example",
          "type": "PHONE_TYPE_UNSPECIFIED"
        }
      ]
    }
  ]
}

What about existing tooling?

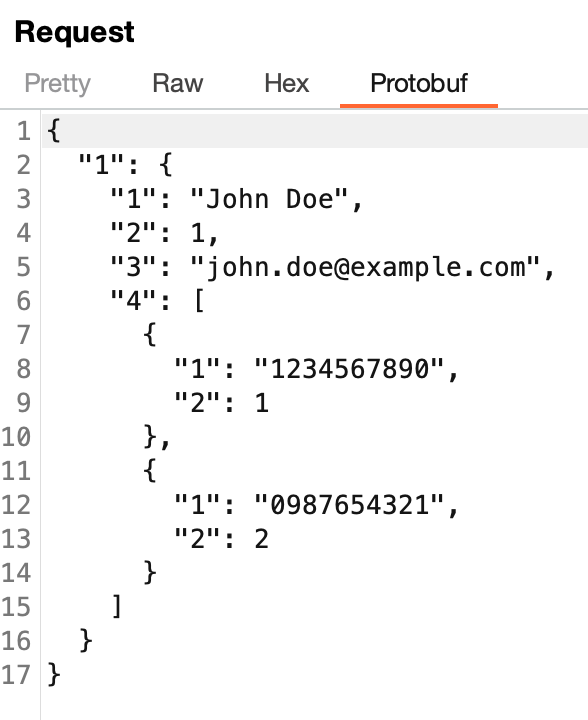

I’ve used the blackboxprotobuf Burp extension for years, which aids in the decoding, editing, and re-encoding of Protobuf messages without known .proto files. For example, the figure below shows the Protobuf from above decoded by blackboxprotobuf.

While it is an excellent tool, one of blackboxprotobuf’s notable limitations is the fact that it can only send protobuf messages it has previously seen through Burp Suite’s proxy. Sometimes, however, researchers want to send new protobuf messages, either because we want to fuzz them, or we know the format of a specific message.

ProtoBurp solves two novel problems:

1. The ability to send new protobuf messages that weren’t already seen through proxy traffic
2. Operability with Burp Intruder and other extensions to fuzz protobuf inputs

ProtoBurp GitHub Repository

You can access ProtoBurp, the JSON generator script, and a test application that accepts Protobufs here. Detailed installation and usage instructions are also included.

Please submit any bugs or feature requests to ProtoBurp’s issue tracker.

Thanks for reading, and I wish you much success testing Protobufs!
